R84G-4AK-RMG
Click to add this item to cart.
Product Description

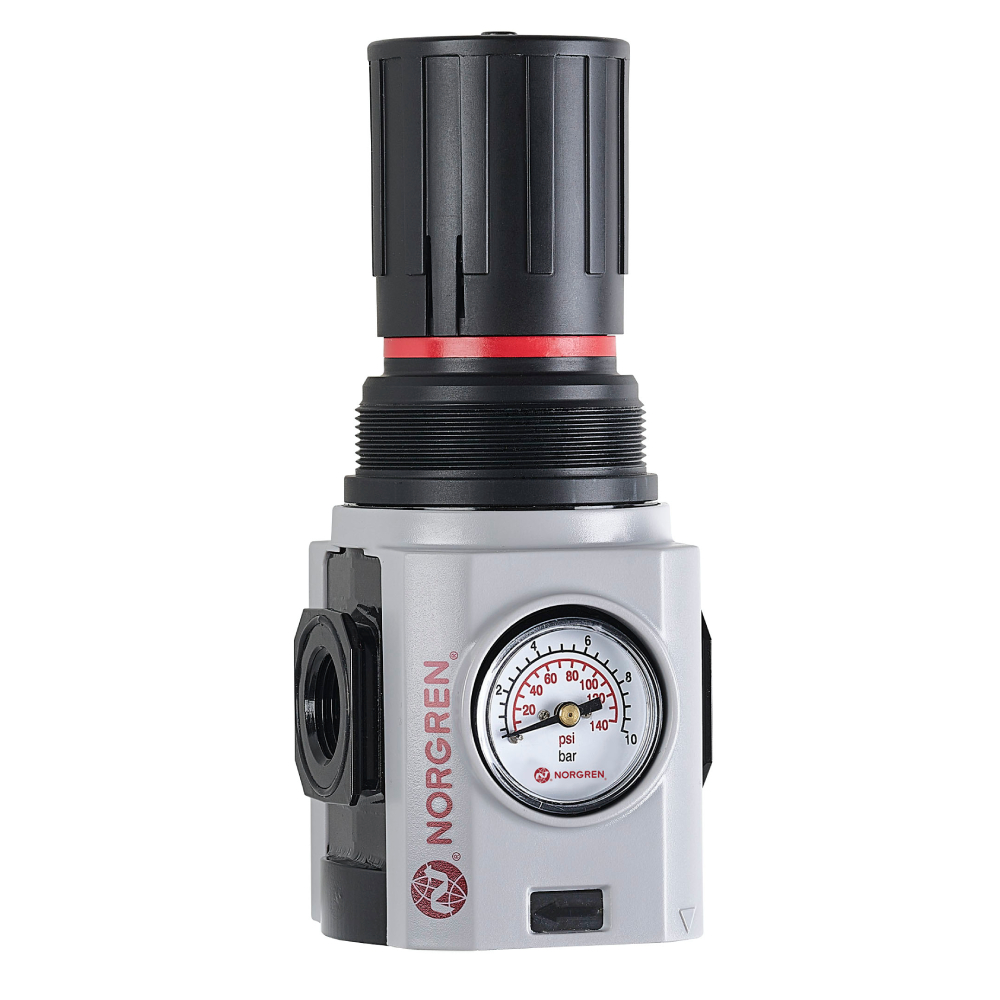

Excelon Plus general purpose pressure regulator, 1/2 PTF, 0.3-10 bar, integrated gauge
| Medium | Compressed air |
|---|---|
| Operating Temperature | -20 … 65 °C, -4 … 149 °F |
| Port Size | 1/2 PTF |
| Adjustment | Knob |
| Maximum Inlet Pressure | 20 bar, 290 psi |
| Outlet Pressure Adjustment | 0.3 … 10 bar, 4 … 145 psi |
| Relieving/Non-Relieving | Relieving |
| Flow | 125 dm3/s, 265 scfm |
| Materials – Adjusting Knob | Acetal |
| Materials – Body | Aluminium alloy |
| Materials – Bonnet | Acetal |
| Materials – Elastomers | Nitrile rubber (NBR) |
| Dimensions – Height | 167 mm |
| Dimensions – Length | 74 mm |
| Dimensions – Width | 70 mm |
| Weight | 0.59 kg |
| Country of Origin | Czechia |
| Range | R84G |
| Series | Excelon Plus |
| Brand | IMI Norgren |
Product Features
| Port Size | 1/2"NPT |
| Operating Pressure |
