V61R517A-A313JB
Click to add this item to cart.
Product Description

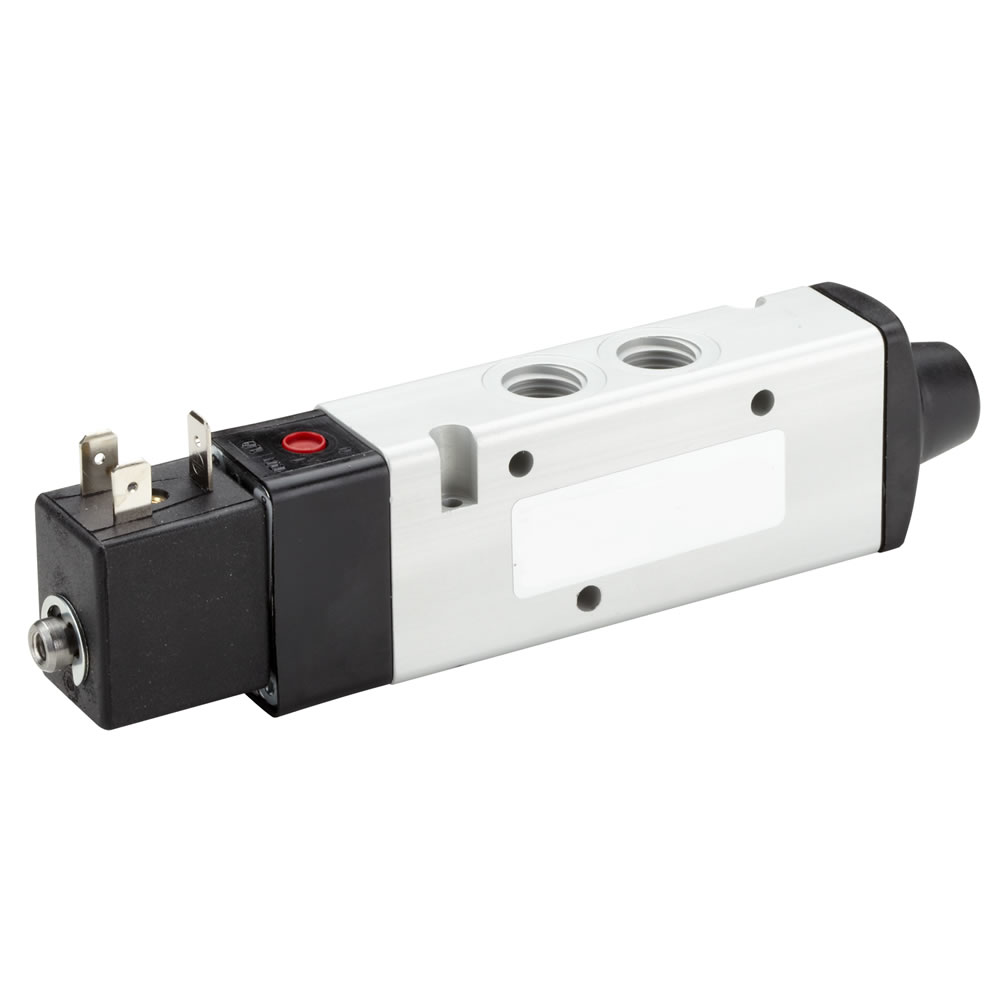

V61 series inline solenoid valve, 1/4 NPT, 5/2, solenoid pilot / spring return
| Medium | Compressed air |
|---|---|
| Operating Temperature | -10 … 50 °C, 14 … 122 °F |
| Operating Pressure | 3 … 10 bar, 44 … 145 psi |
| Port Size | 1/4 NPT |
| Actuation | Solenoid pilot / Spring return |
| Coil Code | QM/48/13J/21 |
| Valve Operation | 5/2 |
| Flow | 1300 l/min, 46 scfm |
| Power Consumption | 2 W |
| Materials – Body | Aluminium |
| Materials – Seals | Nitrile rubber (NBR), Fluoro-Polymer-Material (FPM) |
| IP Rating | IP65 (with sealed plug) |
| Dimensions – Height | 40 mm |
| Dimensions – Length | 167 mm |
| Dimensions – Width | 25 mm |
| Weight | 0.36 kg |
| Country of Origin | Czechia |
| Range | V61 |
| Series | V60…62 |
| Brand | IMI Norgren |
Product Features
| Port Size | 1/4"NPT |
| Voltage | 24VDC |
